Cucamonga Valley Water District

location icon

Rancho Cucamonga, California, United States

Cucamonga Valley Water District

Challenges

  • Modernize aging infrastructure while maintaining operations
  • Enable mobile access and real-time visibility
  • Improve data accessibility for reporting and decision-making

Results

  • Enhanced water supply safety and quality through intuitive control and alarming
  • Seamless integration of new technologies and scalability for future growth
  • Increased operational efficiency and staff confidence
left quotation mark

“The GENESIS64 product suite has allowed us to develop a system that our operators have confidence in. It is highly scalable and provides seamless integration of new applications into our existing control system. ”

— Randy Stewart, Automation and Controls Supervisor | Cucamonga Valley Water District

About the Cucamonga Valley Water District

Headquartered in Rancho Cucamonga, California and in accordance with its mission, the Cucamonga Valley Water District (CVWD) strives “to provide high quality, safe and reliable water and wastewater services, while practicing good stewardship of natural and financial resources.” The facility services a 47-square-mile area with approximately 200,000 people. This area includes Rancho Cucamonga, some areas of San Bernardino County and portions of Upland, Fontana, and Ontario. CVWD functions as a Special District, an independent unit of local government that serves the needs of its community. CVWD has approximately 48,000 water connections, 37,000 sewer connections, and an average daily demand of approximately 47 million gallons. They are one of the leading water suppliers in the region thanks to their innovative water treatment technologies and leadership in addressing state and regional water issues
right quotation mark

“The GENESIS64 product suite has allowed us to develop a system that our operators have confidence in. It is highly scalable and provides seamless integration of new applications into our existing control system. ”

— Randy Stewart, Automation and Controls Supervisor | Cucamonga Valley Water District

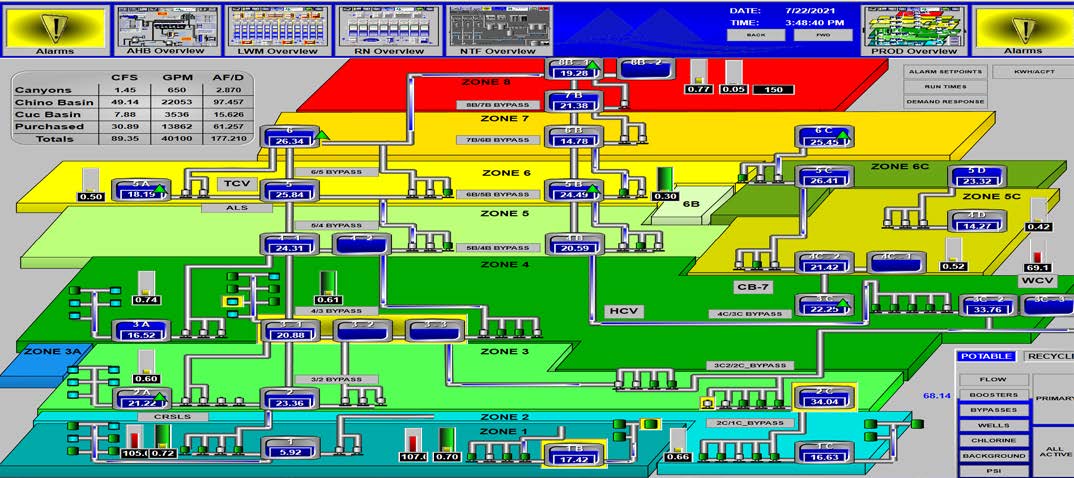

Production Overview Production Overview

Project Summary - How CVWD Continually Strives for Service Beyond Expectation

In 2008, the Cucamonga Valley Water District embarked on a control system project intended to simultaneously retrofit an existing treatment facility and increase the functionality of its existing controls. The organization identified features in an HMI/SCADA solution that would easily integrate with existing infrastructure. Working with engineering partner, Black & Veatch, CVWD sought a solution that was not processor-intensive, could deliver a mobile component for employees, and provide comprehensive reporting abilities. After extensive evaluation of multiple platforms, CVWD selected the GENESIS automation software suite as a comprehensive package. The package offered graphics, trends, alarming, and notifications in a single software suite. Along with the comprehensive package, Mitsubishi Electric Iconics Digital Solutions also offered an unlimited tag count with a fully operational trial system capable of being developed as a pilot.

Initially, the GENESIS32™ Enterprise HMI/SCADA suite was deployed including:
• AlarmWorX™ Multimedia
• ReportWorX™
• ToolWorX™
• TrendWorX™
• WebHMI™
Production Overview Production Overview

Solutions Deployed

As the CVWD continued to leverage its system’s capabilities to better serve its customers, it looked to our ever-evolving solutions to achieve new goals. With GENESIS64 on the horizon, both the CVWD and Mitsubishi Electric Iconics Digital Solutions teams used collaborative methods to develop the scope and approach to upgrade and cutover to the new system. The following solutions were identified and utilized in the upgrade:

  • GENESIS64 HMI/SCADA Suite
  • AlarmWorX64
  • ReportWorX64
  • WebHMI

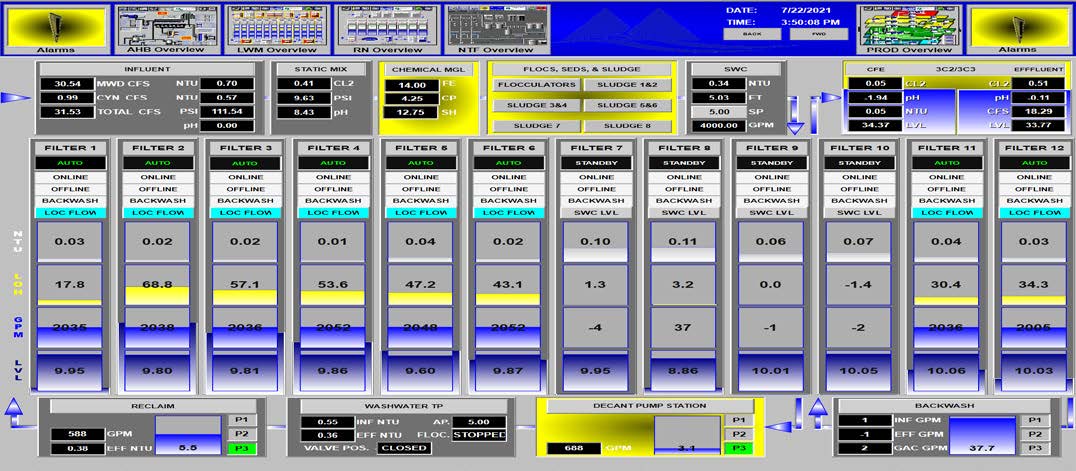

Plant Overview

Plant Overview

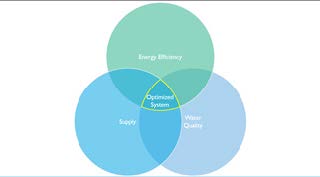

CVWD Operations Strategy CVWD Operations Strategy

Realized Benefits from GENESIS Software Upgrade

Again,we were able to meet Cucamonga Valley Water District’s needs for its industrial automation application. New features and tools have provided the opportunity for the CVWD to improve system performance in the areas of Supply, Quality, and Efficiency. GENESIS64 has provided the tools to guarantee safe and secure control related to water supply with seamless integration of new technology regardless of communication protocols. Water quality is of the highest priority as related to public health and is secured with intuitive visualization, effective alarming, and the ability to analyze historical data. Efficient operation provides the ability to optimize system operations and provide Service Beyond Expectation. The GENESIS64 product suite has allowed CVWD staff to develop a system that is highly scalable with seamless integration of new process applications.
CVWD Operations Strategy CVWD Operations Strategy

Solutions Highlighted

• WebHMI - Brings the capabilities of GENESIS64 applications to any HTML5 or WPF compliant web browser
• AlarmWorX Multimedia - OPC Alarm Management Software
• ReportWorX - Enterprise Reporting, Charting and Analysis Software

“”

—

Conclusion

The Cucamonga Valley Water District initially selected GENESIS due to its advanced HMI/SCADA solutions, feature-rich applications, and ability to pilot a fully functional system. The District recently completed a system upgrade with the support and ease expected of Mitsubishi Electric Iconics Digital Solutions. Future plans include continuous development focusing in the area of operational efficiency. With Mitsubishi Electric Iconics Digital Solutions as a partner, the Cucamonga Valley Water District can most certainly continue to provide Service Beyond Expectation.

“”

—
